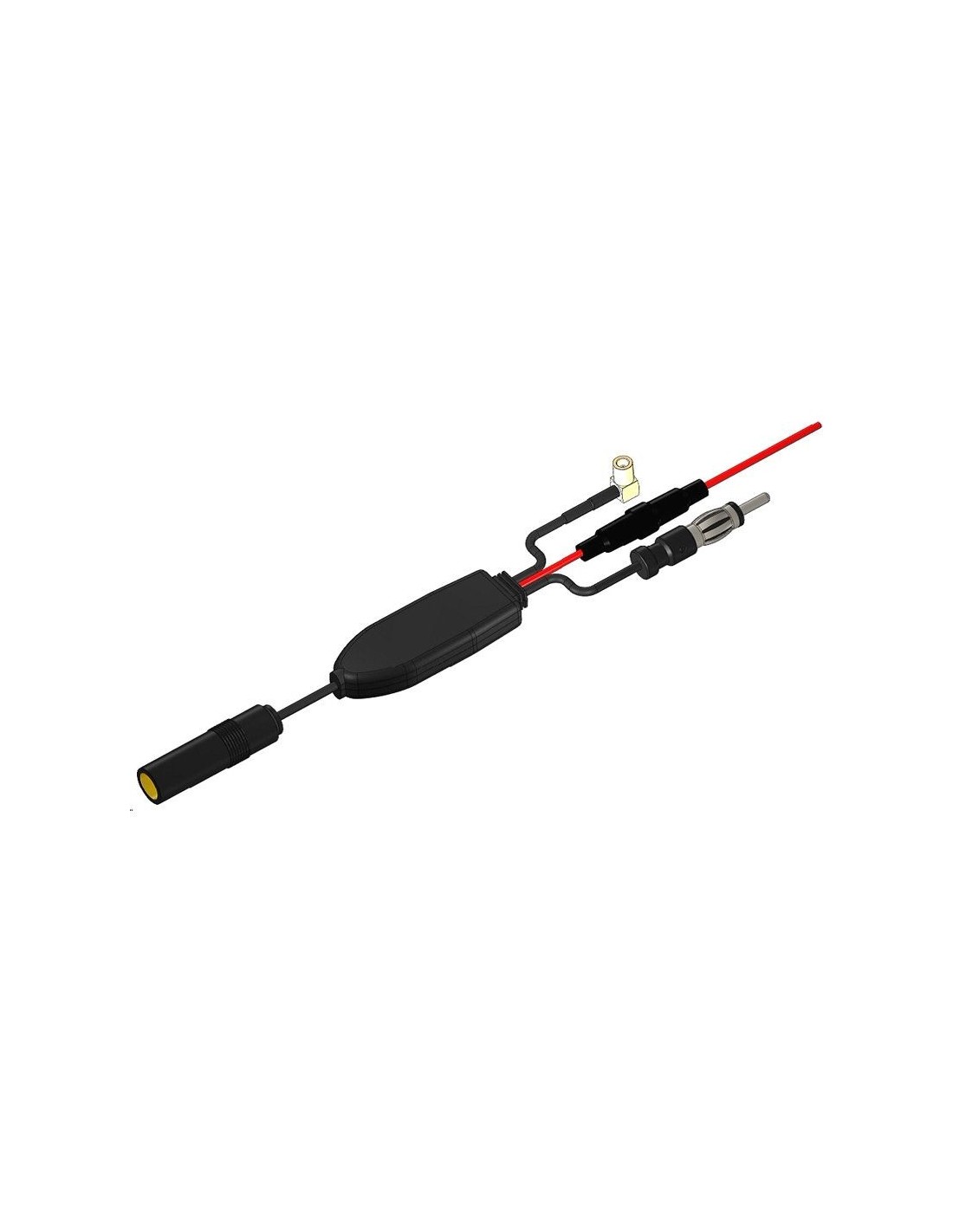

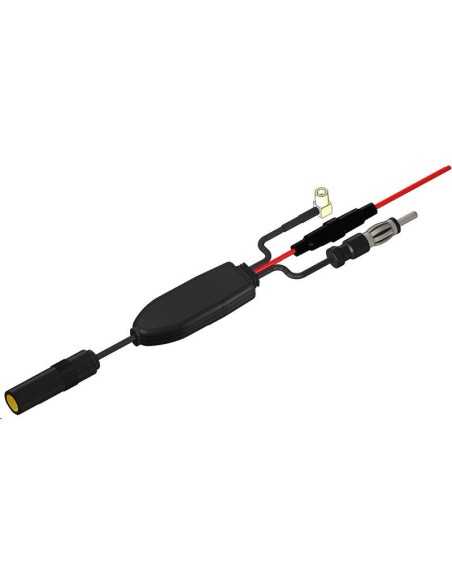

DAB Antenna converter from Standard FM to DAB
Adapter to make a normal FM antenna suitable for DAB reception.
Same-Stuff-Different Name
Amplifier Frequency Range 525~1605KHz/88~108MHz/174~237MHz
Wave Band AM/FM/DAB B
Impendance 50ohm
Gain AM/FM:10±2dB DAB:20±2dB
V.S.W.R < 2.0
Noise Figure <3.0
Supply Voltage 9~24V DC
Current Consumption 26~28mA

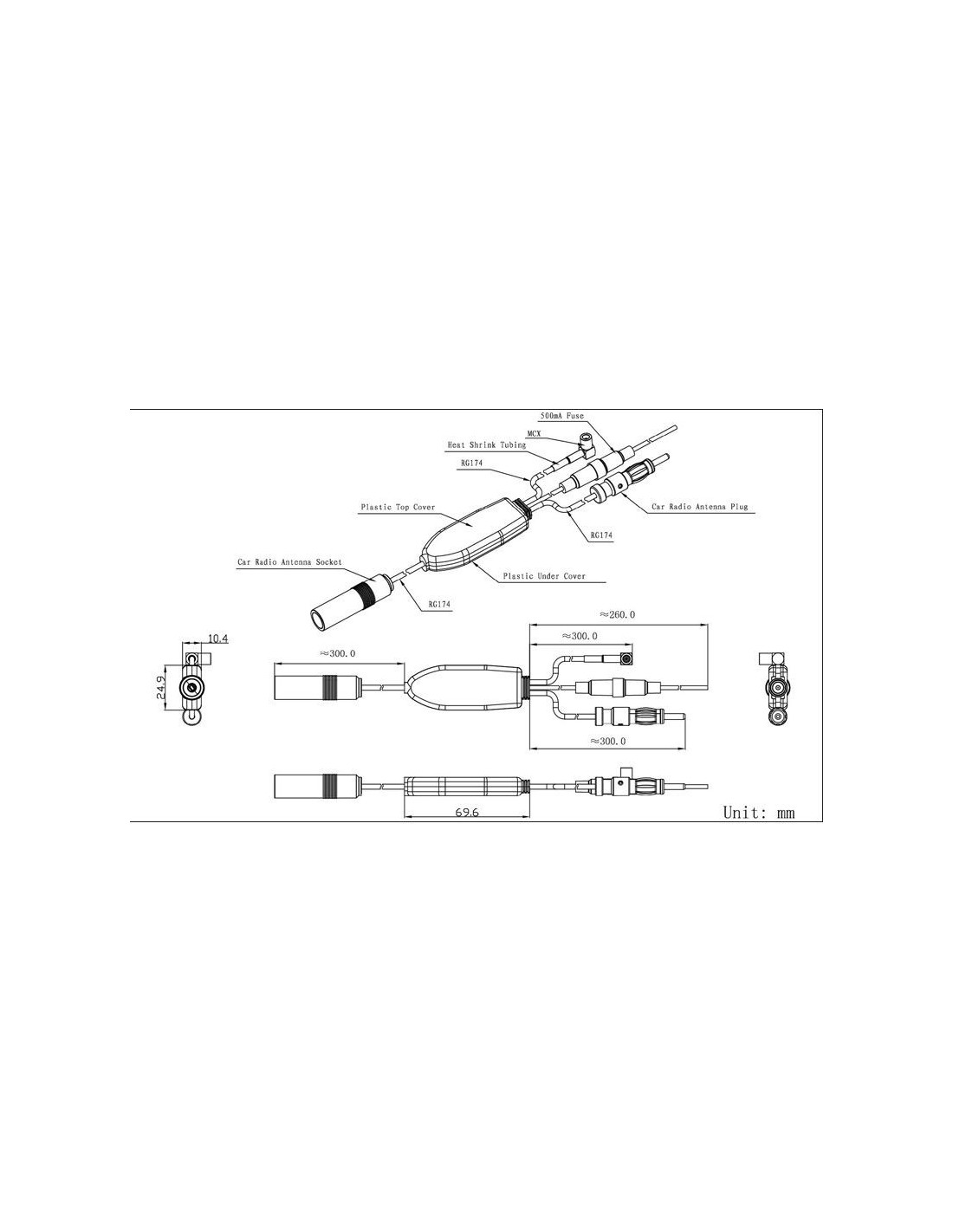

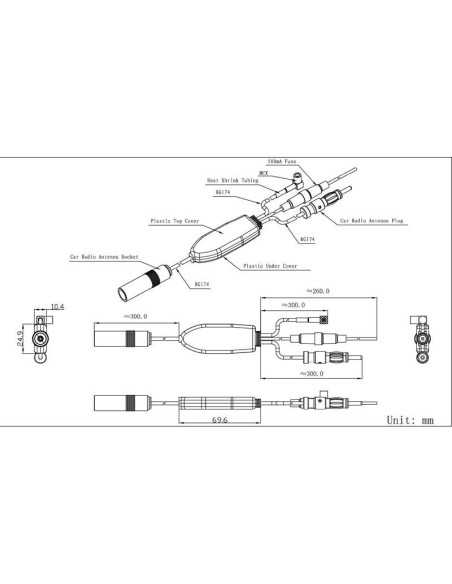

Mechanical Cable RG174
PCB FR4
Connector Car Antenna Plug&Socket MCX or others
Plastic Housing ABS
Environmental Operating Temperature -40 - +85 graden Celsius
Relative Humidity Up to 75%
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
