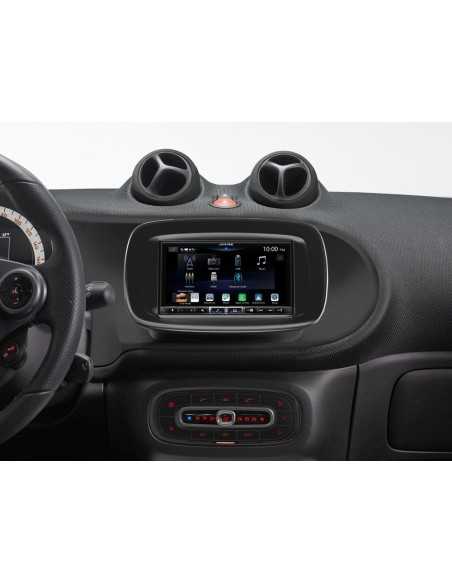

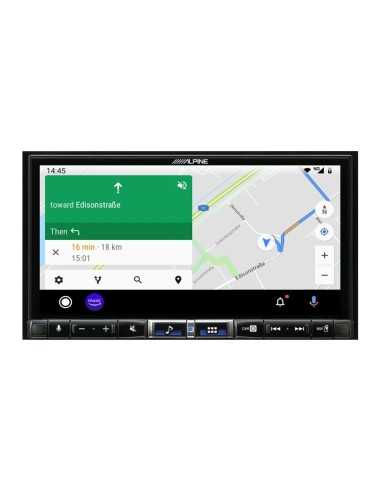

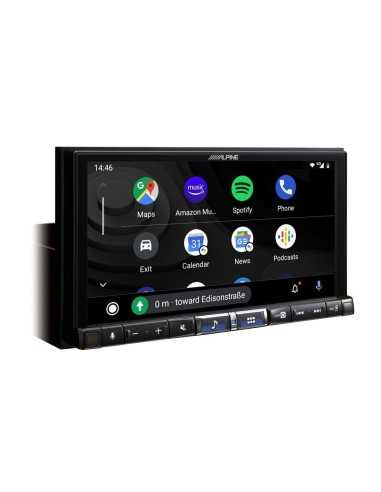

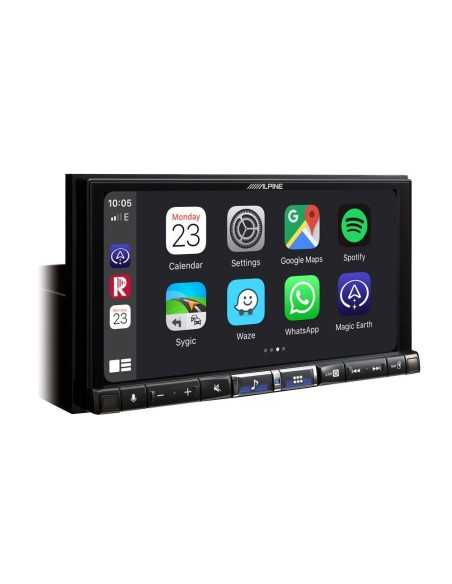

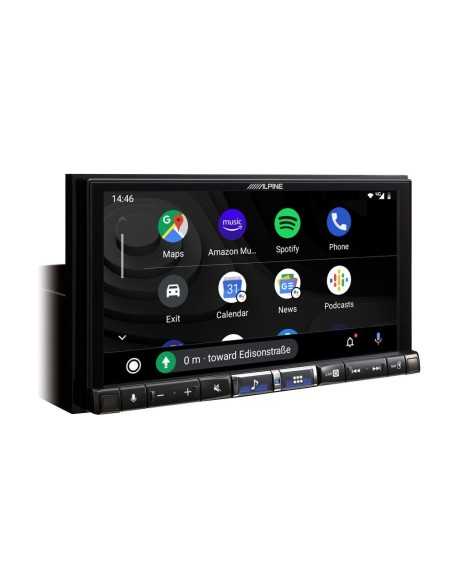

"Digital-Media-Station 7 inch Touchscreen, DAB+, Apple CarPlay Wireless, Android Auto for Smart 453"

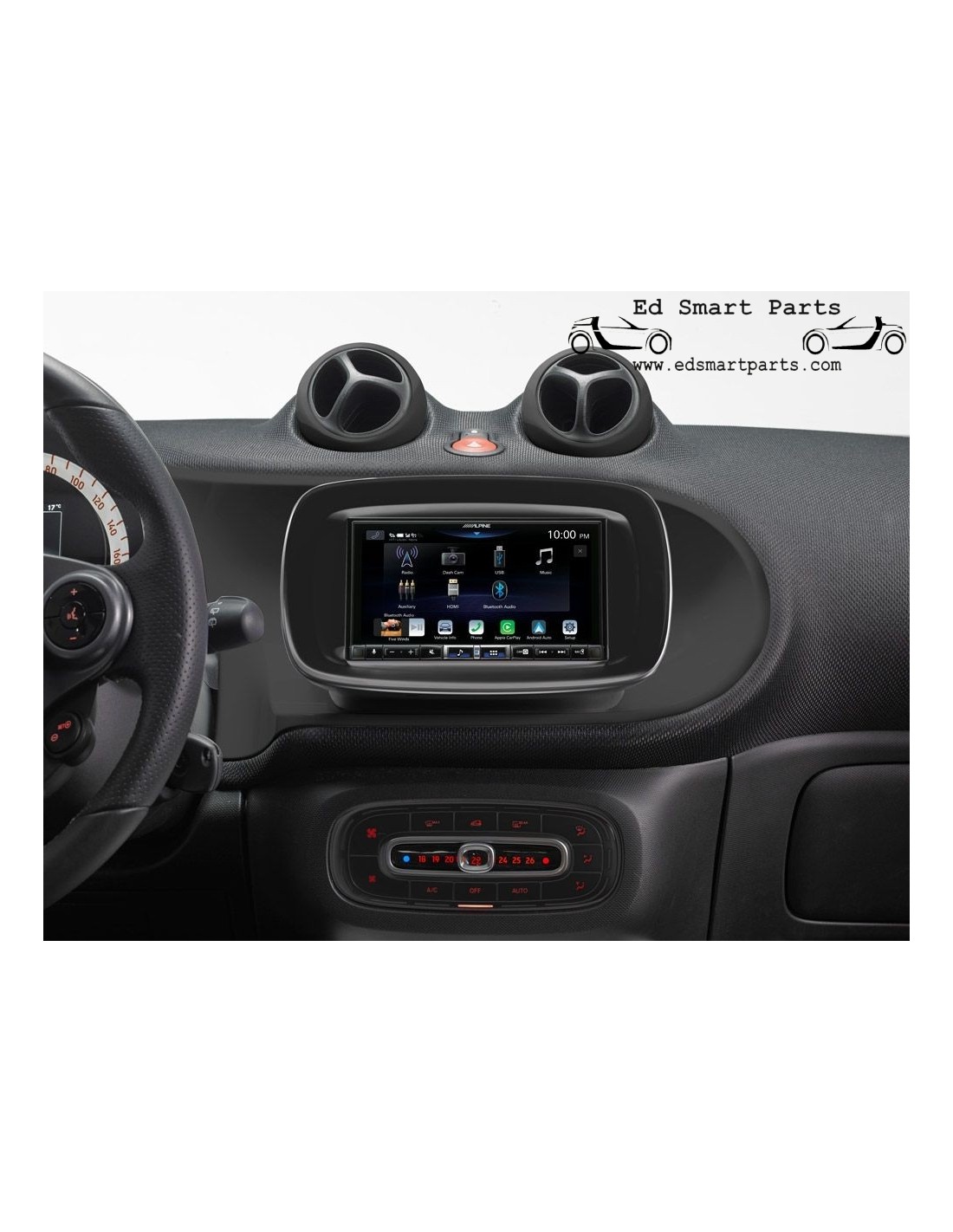

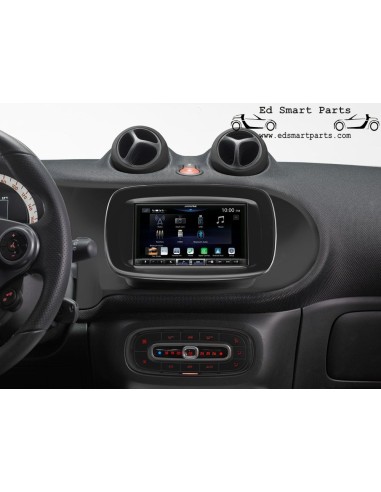

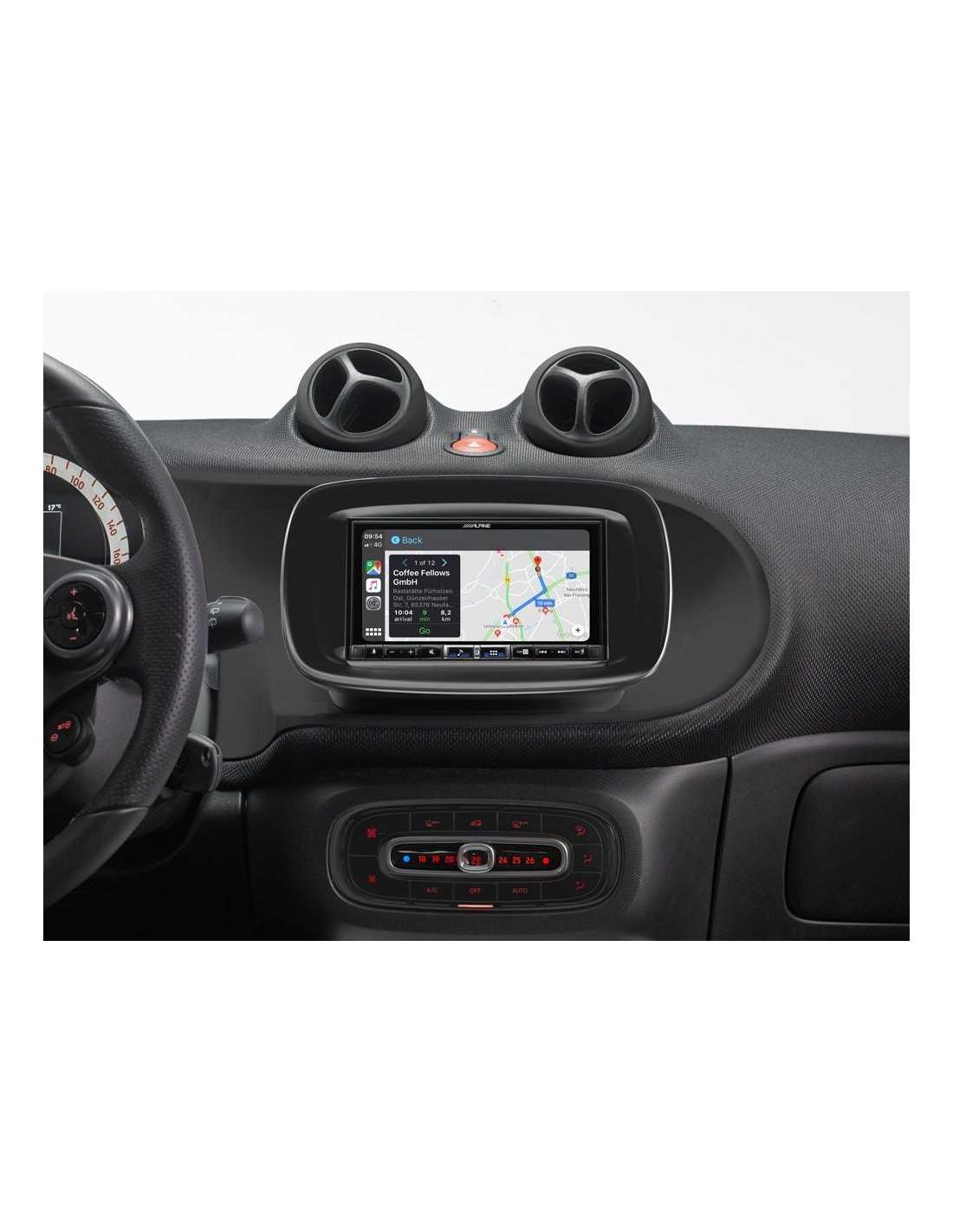

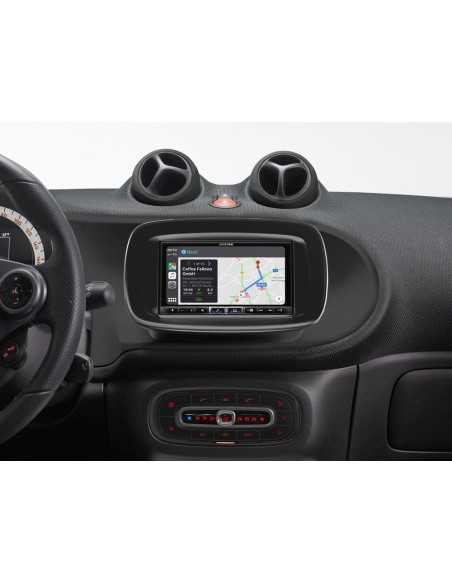

Specifically designed for the SMART (453), Alpine offers a new car radio with a 7-inch touchscreen and uses a 1-DIN housing that fits perfectly into the "smart" (453).
The iLX-705S453B Digital-Media-Station brings the latest media compatibility, online navigation capabilities, and audiophile sound quality from Alpine to your vehicle. It is fully compatible with the latest smartphones and allows the use of Android Auto and Apple CarPlay Wireless on its high-resolution 7-inch touchscreen.
DAB+ digital radio, USB video playback, HDMI connection, and the latest Bluetooth technology are also integrated.
Even for navigation, there are several options available: The iLX-705S453B has an online navigation function for using maps with Apple CarPlay Wireless and Google Navigation with Android Auto. Both the Apple CarPlay and Android Auto apps access the Alpine GNSS antenna for very high positional accuracy.
FEATURES - Radio/DAB Tuner
Station memory (FM: 3x 12 / DAB: 3x 12 / AM: 2x 12)
Channel memory: Automatic channel memory
Search function: Local, DX, PreSet, Service
RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB+/DMB supportDAB+ Slideshow Service
DLS (Dynamic Label Service) and DAB Service Following
Seamless-Linking Seamles (automatic DAB+/FM switching without interruption (when signal is available)
Automatic ensemble/service storage
Service search and PTY search function
Alphabetical station search function
BLUETOOTH®
Integrated BLUETOOTH® module V4.2
Hands-free function: HFP (Hands Free Profile) compatible
Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
Music streaming control: AVRCP (Audio/Video Remote Control Profile) version 1.5 compatible
Phone book: Automatic phone book transfer
Direct dial buttons: 4 memory slots per phone
Call history: dialed number / received calls / missed calls
Redial function
Voice volume adjustment: Adjustable for incoming and outgoing calls
Menu language selection: 24 menu languages
Microphones included
Works with iPhone®
Compatible for iPhone with Lightning connector
Various search functions and album artwork display
Battery charging function
Connectivity

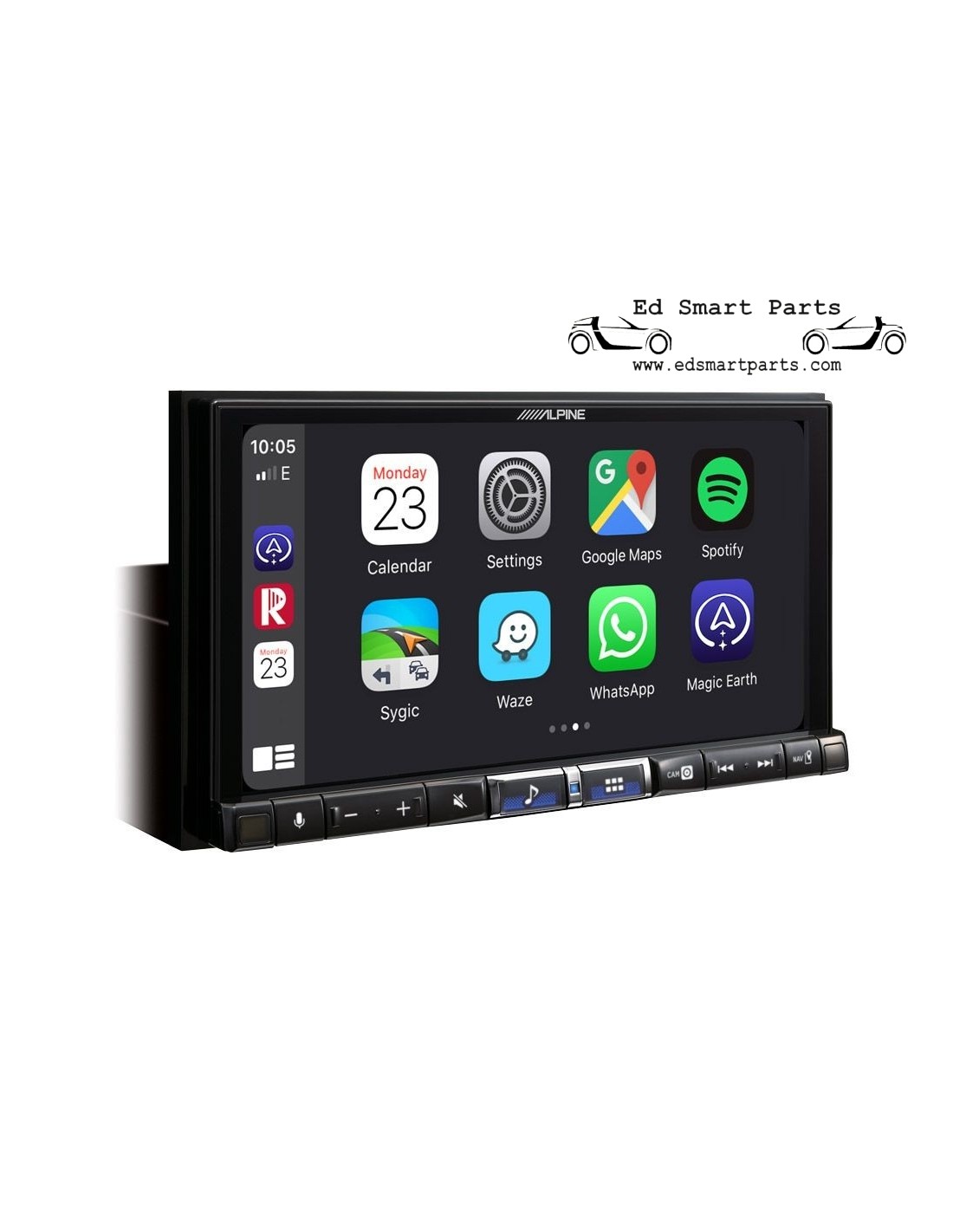

Works with Apple CarPlay Wireless (from iPhone 6S) and Apple CarPlay (CarPlay-enabled smartphone required)

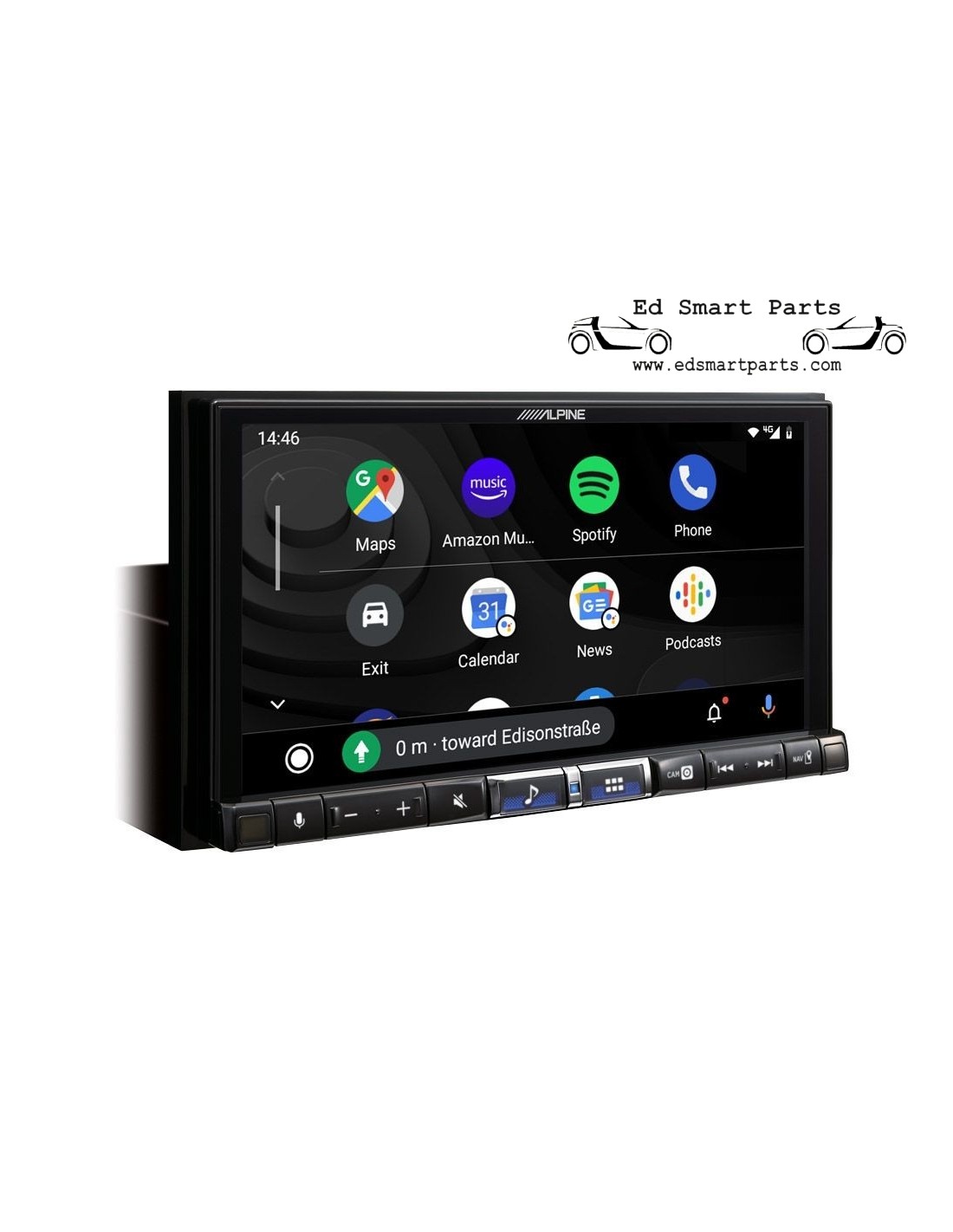

Works with Android Auto (Android Auto-enabled smartphone required)
Dash Cam Link for DVR-C320S for display and control of the dash cam
Online navigation functions

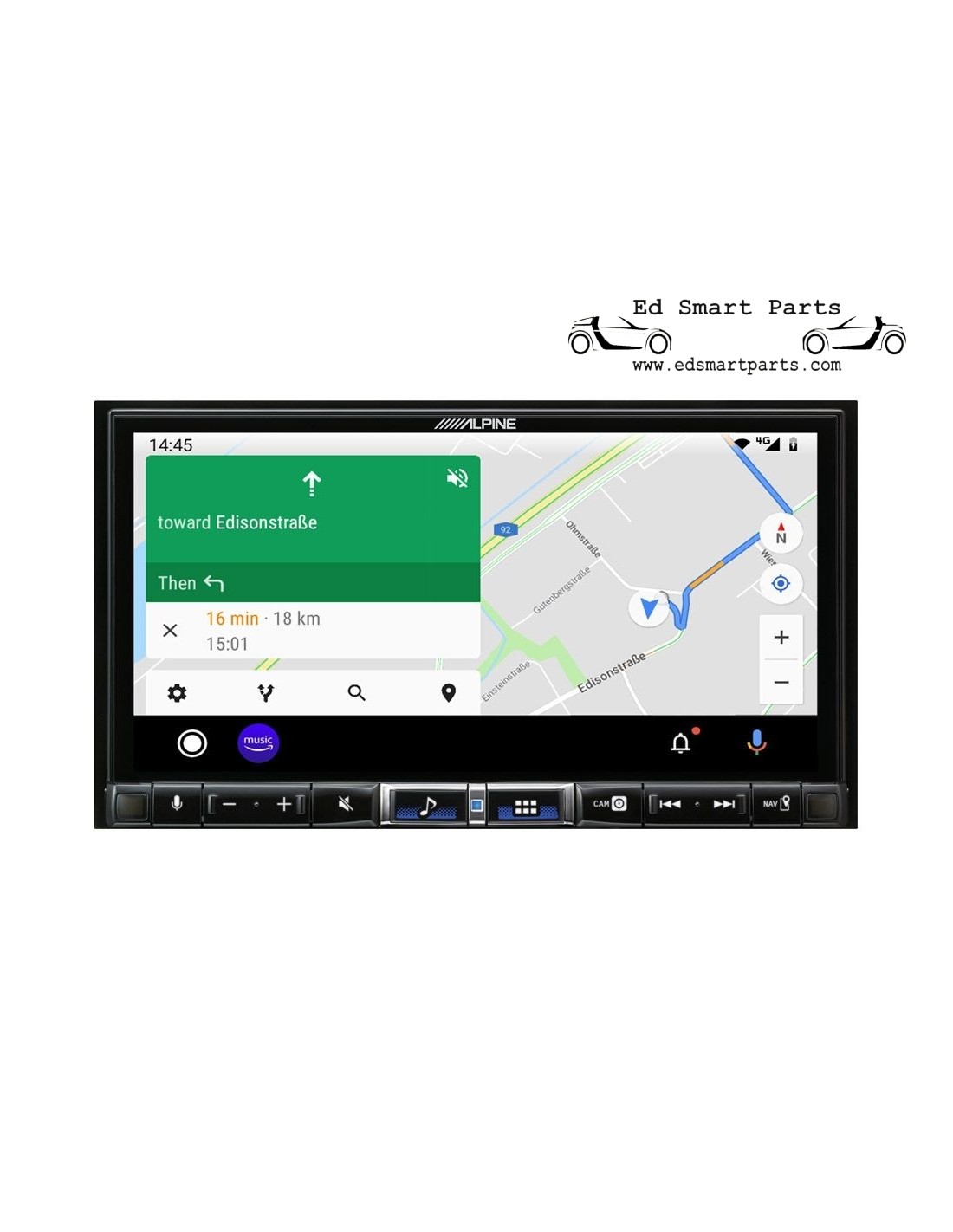

Online navigation in conjunction with Apple CarPlay and Android Auto
Includes GPS antenna#
Direct access to navigation from CarPlay or Google Maps
USB port
2x USB connection cables (2m) included
USB port 1: Media playback / USB port 2: Battery charging function
Music playback formats: FLAC, MP3, WMA, AAC, APE
Video playback: MP4, MOV, FLV, MKV
Supported video formats: MPEG-4 / H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
Various search functions included
Sound tuning
Bass Engine SQ and Bass Engine PRO sound tuning
Adjustable subwoofer level
6 V preamplifier output
10 equalizer presets
56-band parametric EQ, (4x 13-band front L/R, rear L/R + 4-band for subwoofer)
6-channel time correction
Digital crossover
Independent source volume adjustment
For detailed information on sound options, please refer to the PDF user manual in the SUPPORT section below.
General
4x 50 Watt Class-D high-power amplifier
18 cm (7-inch) capacitive WXGA touchscreen (1280 x 720p)
Screen adjustable in tilt, height, and depth
3 preamplifier outputs (6 V, front / rear / subwoofer)
1 A/V AUX input (3.5 mm jack optional C1902-NAV)
1 HDMI input / 1 HDMI output
2 USB connections (1x USB media playback / 1x USB charging function)
Compatible with steering wheel remote control
Vehicle Display Interface Ready (UART connection)
Remote control available as an option (RUE-4360)
2x camera direct connection Note: does not support the camera switching box KCX-C250MC
Rearview camera guide lines (adjustable)
Trailer guide lines for rearview camera
Live contrast adjustment
Menu language: 24 languages
Automatic dimmer
Theft protection with PIN code
Start-Stop Ready
Installation

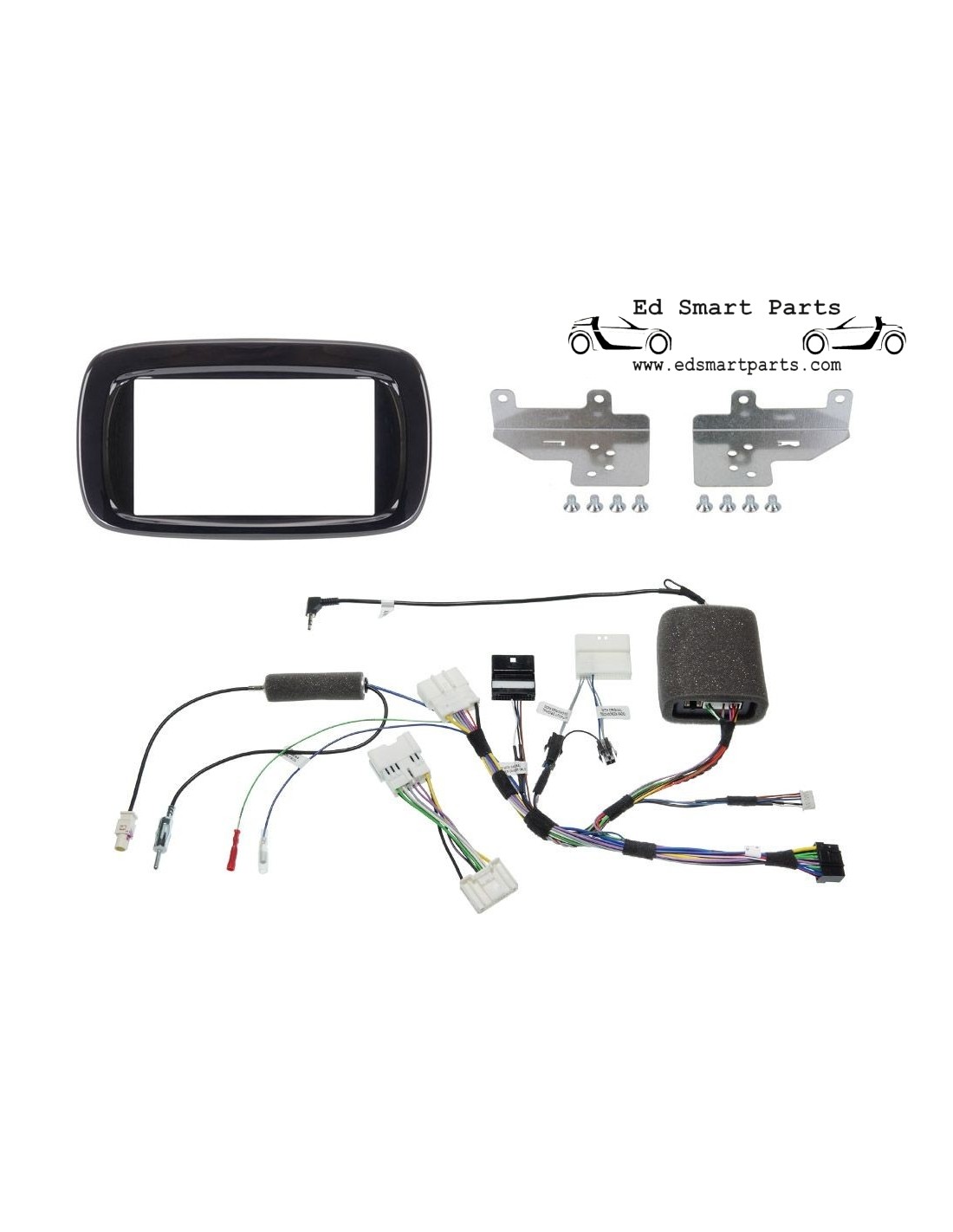

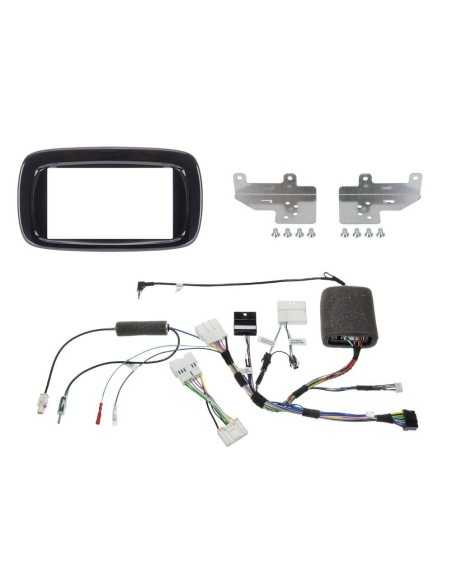

Includes mounting brackets, wiring harness, and CAN bus interface for a perfect installation and connection in the vehicle.
SPECIFICATION - Screen
Screen size: 18 cm (7-inch) capacitive WXGA display
Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
Lighting system: White LED backlight
Effective number of picture elements: 99.99% or more
Color system: NTSC, PAL
Maximum output power
Max. power 4x 50 W
Radio / DAB tuner
FM frequency range: 87.5 - 108.0 MHz
AM frequency range: 531 - 1,602 kHz
ZAB Band III: 174 – 240 MHz
Alternative channel separation: 80 dB
Signal-to-noise ratio (S/N): 65 dB / 90 dB
DAB audio format: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC
WiFi
Reception frequency: IEEE 802.11 b/g/n (2.4 GHz)
Channels: 1 – 13 ch (2.4 GHz)
Security protocol: WPA3 / WPA2-PSK (TKIP, AES)
USB
USB requirements: USB 2.0
USB 1: Media playback / 2,400 mA (Mass Storage Class)
USB 2: Battery charging function / 1,500 mA (CDP Support)
USB class: Playback from device / Mass storage
File system: FAT16 / FAT32 / exFAT
Audio formats: FLAC, MP3, WMA, AAC, WAV, APE
Video playback: MP4, MOV, FLV, MKV
Supported video formats: MPEG-4 / H.264 (MPEG-4/AVC) / MPEG-1 / MPEG-2
Number of channels: 2-channel (stereo)
Frequency response: 5 - 40 kHz ±1 dB *Depending on encoding software and bitrate
Total harmonic distortion - T.H.D. (@ 1 kHz): 0.005%
Dynamic range (@ 1 kHz): 95 dB
Signal-to-noise ratio: 95 dB
GPS
Includes compatible GPS antenna
GPS frequency: 1575.42 +/- 1.023 MHz
Input sensitivity (search): -136 dB max
BLUETOOTH®
BLUETOOTH® version: Bluetooth V4.2
Output power: +4 dBm max. (Power Class 2)
HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
Supports LDAC Audio Codec
Sound tuning
Adjustable subwoofer level: 0 to +15
Subwoofer phase: 0° or 180°
BASS ENGINE SQ: 5 modes, level 0 to +6
For detailed information on band and frequency settings, please refer to the PDF user manual in the SUPPORT section
HDMI
Input format 720p / 480p / VGA
General
Power supply: 14.4 V.DC (11-16 V allowable)
Preamplifier output (without clipping): 6 V / 10 kOhm
Dimensions
Weight: 1.4 kg
Housing dimensions (W x H x D) mm: 178 x 50 x 150
Screen dimensions (W x H x D) mm: 171 x 96 x 18
Compatible vehicles
Manufacturer Model Model year
SMART Fortwo / FourFour (453) 2014 →
Please note:
For vehicles with radio preparation (open dashboard) or with a navigation system, an additional smart radio installation frame is required. Please consult your local smart dealer.
For vehicles with the original JBL sound system, an additional ActivPlus sound adapter is required. Please ask your Alpine dealer for more information.
The functions of the smart EQ display are not available on the Alpine radio.
